jandd661

Target of Target and WoW style targeting

Recommended Posts

Latest Updates:

  • 5/14/20 Fixed targeting behavior of friendly targets. Right clicking on a friendly target will no longer put you in combat mode if friendly target can be attacked by others.
  • 5/13/20 Full rewrite of the Targeting. ClearTarget.cs has been replaced with TargetingTweaks.cs. Please replace the ClearTarget.cs with TargetingTweaks.cs.
  • 5/12/20 Fix has been implemented into the updated package (Download link below). Please send me your feedback if you have problems. Thanks!

Name: Target of Target and Targeting Tweaks
Updated: 2020-05-14
Version: BETA
By: 1stGenGamer
Note: If you have any problems or issues please send me a message on discord https://discord.gg/5hA83k. Please understand that I'm sharing this because it may be useful for someone. It may all break with a Atavism update.

You do not need to use both if there is one you don't want.

This package was built and tested in in Unity v2019.2 with Atavsim 10.1

Package includes:

Prefab of ToT frame - I made it in the UI of the MainWorld scene of Atavsim 10.1.

Target Tweaks script TargetingTweaks.cs
-------------------------------------
Tweeks the default targeting behavior to deselect the target based on distance and if you click off the target. Similar to WoW. Atavism currently does not restrict the targeting distance. So a known issue is, if the player clicks on a target beyond the scripts max target distance, the target frame will briefly appear then disappear.

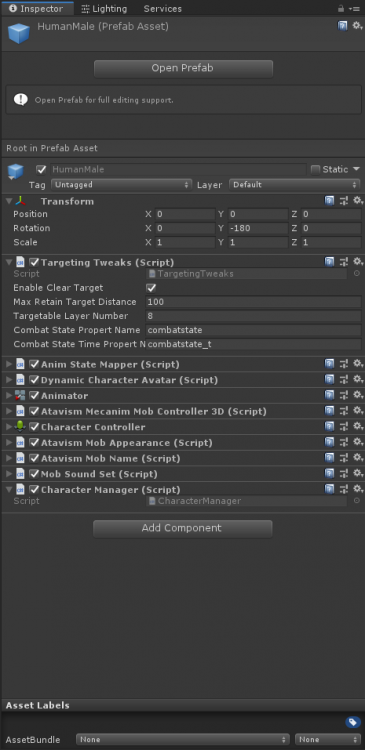

Place TargetingTweaks.cs on all your character prefabs in Assets/Resources. Your in the right place if you see "Atavism Mecanim Mob Controller 3D" script component.

"Enable" turn it on and off. This is publicly available FirstGenMods.ClearTarget.Enable {get; set;}
"Max Retain Target Distance" is the distance you can go from the target without loosing the target. Default is 100.
"Targetable Layer Number" is the layer id of targetable objects. You can get this by expanding the "Layer" dropdown at the top of the inspector. Default is 8.
"Combat State Property Name" the name of the property that indicates it's current combat state. Default is "combatstate" (no quotes).
"Combat State Time Property Name" the name of the property that indicates it's current combat state time. Default is "combatstate_t" (no quotes).

Target of Target (ToT) script TargetOfTarget.cs
-----------------------------------------------
Adds ToT functionality.  Currently does not display pet's target.

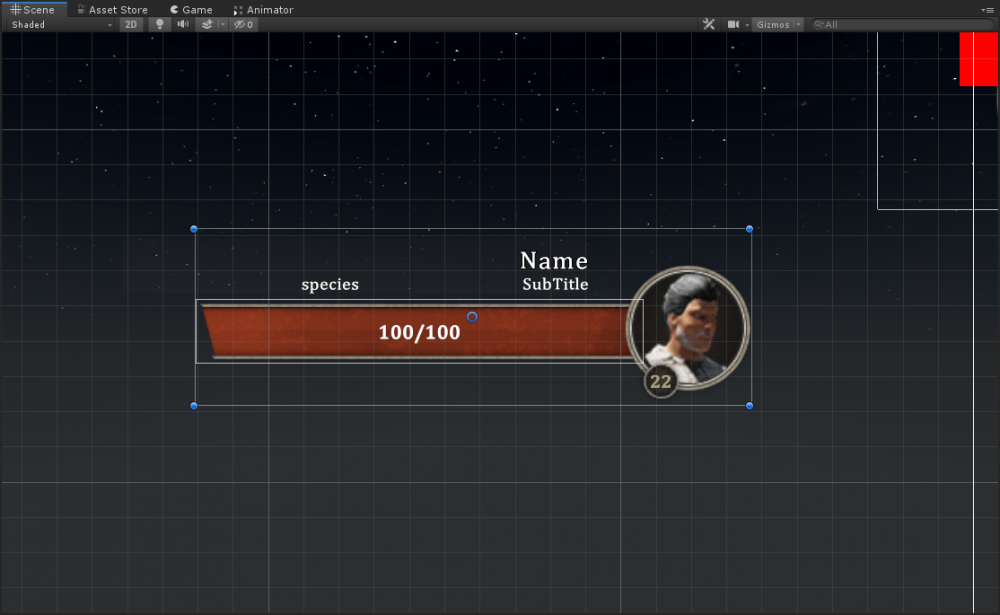

  1. For an example set up, see the Target of Target Frame prefab in the prefab folder.
  2. Create a transparent Image object/container as a child frame of the main target frame.
  3. Place your ToT frame or the provided prefab as a child of the frame you just created.
  4. Plase the TargetOfTargetScript.cs on the container frame you created.
  5. Fill in the references.
  6. Look at the prefab in the Prefab folder for an example. You may be able to drop the prefab on to your Canvas at it will just work. I recommend placing it as a child of the main target frame.

Main Target Frame
     |-- Container Frame <-- Script here
              |-- ToT Frame

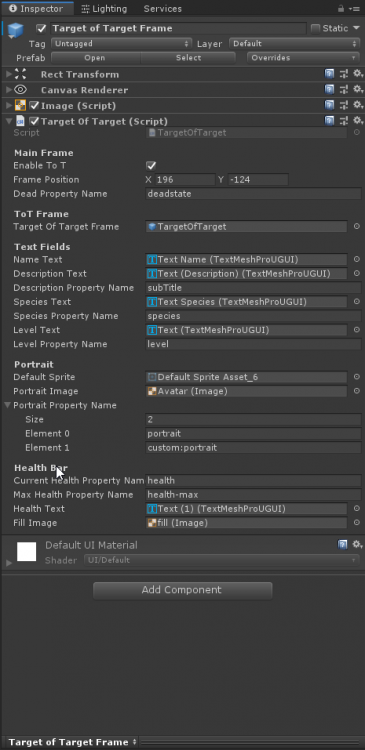

"Enable" turn it on and off. This is publicly available FirstGenMods.TargetOfTarget.Enable {get; set;}
"Frame Position" The Rec Pos X and Pos Y the frame will move to when loaded. Once set, you can drag it somewhere in the editor so you can work on it.
"Dead Property Name" the name of the target property that indicates dead. Default is "deadstate" (no quotes).
"Target Of Target Frame" Reference to the child ToT frame.
"Name, Description, Species, Level" TextMeshPro text objects.
"Default Sprite" Sprite used for the portrait if the target one can't be found.
"Portrait Image" The Image object used to display the portrait.
"Level Property Name" the name of the target property that indicates it's level. Default is "level" (no quotes).
"Current Health Property Name" the name of the target property that indicates it's current health. Default is "health" (no quotes).
"Max Health Property Name" the name of the target property that indicates it's max health. Default is "health-max" (no quotes).
"Health Text" the TextMeshPro text object used to display the health numbers.
"Fill Image" Image object with slider used to display the health bar.

Download Unity Package:

Just get the scripts:



Unity_paolaSIm2V.pngUnity_X0TaYPodZT.thumb.png.659ecc578a09c6856e9dff8ec02734c9.pngUnity_84mBl0ylDF.thumb.png.c1d8093e346103b0537a8d656bf4d1dd.png


Share this post


Link to post
Share on other sites
24 minutes ago, jandd661 said:

Name: Target of Target and Clear Target
Version: BETA
By: 1stGenGamer
Note: If you have any problems or issues please send me a message in the Atavsim discord. Please understand that I'm sharing this because it may be useful for someone. It may all break with a Atavsim update.

This package was built and tested in in Unity v2019.2 with Atavsim 10.1

Package includes:

Prefab of ToT frame - I made it in the UI of the MainWorld scene of Atavsim 10.1.

Target Deselect script ClearTarget.cs
-------------------------------------
Tweeks the default targeting behavior to deselect the target based on distance and if you click off the target. Similar to WoW. Atavism currently does not restrict the targeting distance. So a known issue is, if the player clicks on a target beyond the scripts max target distance, the target frame will briefly appear then disappear.

Place ClearTarget.cs on all your character prefabs in Assets/Resources. Your in the right place if you see "Atavism Mecanim Mob Controller 3D" script component.

"Enable" turn it on and off. This is publicly available FirstGenMods.ClearTarget.Enable {get; set;}
"Max Retain Target Distance" is the distance you can go from the target without loosing the target. Default is 30.
"Targetable Layer Number" is the layer id of targetable objects. You can get this by expanding the "Layer" dropdown at the top of the inspector. Default is 8.

Target of Target (ToT) script TargetOfTarget.cs
-----------------------------------------------
Adds ToT functionality.  Currently does not display pet's target. For an example set up, see the Target of Target Frame prefab in the prefab folder.

This should be on a transparent Image object/container. Your ToT frame should be a chield of that frame. Look at the prefab in the Prefab folder for an example. You may be able to drop the prefab on to your Canvas at it will just work.

"Enable" turn it on and off. This is publicly available FirstGenMods.TargetOfTarget.Enable {get; set;}
"Frame Position" The Rec Pos X and Pos Y the frame will move to when loaded. Once set, you can drag it somewhere in the editor so you can work on it.
"Dead Property Name" the name of the target property that indicates dead. Default is "deadstate" (no quotes).
"Target Of Target Frame" Reference to the child ToT frame.
"Name, Description, Species, Level" TextMeshPro text objects.
"Default Sprite" Sprite used for the portrait if the target one can't be found.
"Portrait Image" The Image object used to display the portrait.
"Level Property Name" the name of the target property that indicates it's level. Default is "level" (no quotes).
"Current Health Property Name" the name of the target property that indicates it's current health. Default is "health" (no quotes).
"Max Health Property Name" the name of the target property that indicates it's max health. Default is "health-max" (no quotes).
"Health Text" the TextMeshPro text object used to display the health numbers.
"Fill Image" Image object with slider used to display the health bar.

Download: https://drive.google.com/open?id=11W_pnLlTOed4haDvw3KO25eIdF3a5TXT

Thanks for the share! :)

Share this post


Link to post
Share on other sites

Hello all. I've fixed the known issue about blinking target frame in case player clicks on a target beyond the scripts max target distance. I introduced 'Outside Target Distance Timeout' parameter, it sets timeout for the frame to disappear (default - 10 seconds). If player will reach the target inner distance to the enemy (e.g. Max Retain Target Distance - 1) during this time then the frame will remain until the player leaves the target  radius. If the player will stay away from the enemy without goin inside the target radius then the frame will disappear after timeout. For me this solution is fine, maybe someone also would use it. Please let me know in case of any related issues.

ClearTarget.cs

Share this post


Link to post
Share on other sites
4 minutes ago, Aizen said:

target of target player to player dont show i dont know if thats is normal coos in wow you can see othere players target you

Thanks Aizen. I will look into that. I'm currently on a business trip so it might be a few days.

Share this post


Link to post
Share on other sites
